DRY Scrubbers

Emerald Dry Scrubbers are used to eliminate the polluted air which comes out from kitchen of hotel, restaurant, etc. The polluted air which is harmful to health, environment is treated in such a fashion that it removes oil, grease & carbon particles & provides fresh air to the environment.

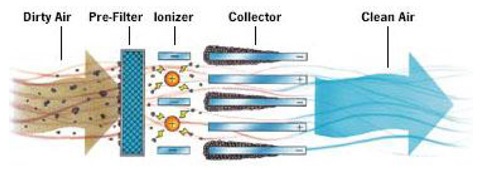

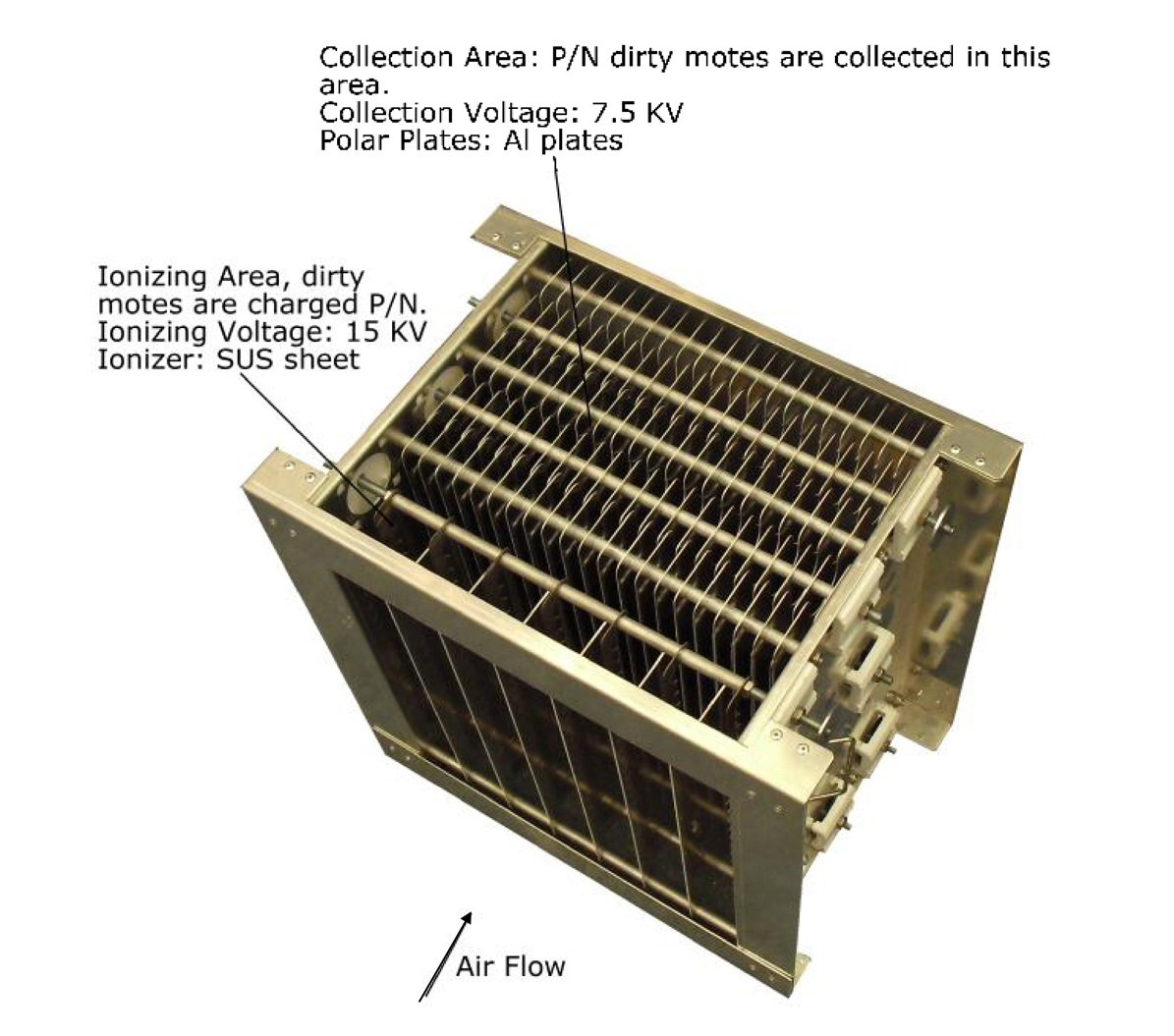

	PRINCIPLE OF OPERATION 1. Polluted air is exhausted into the electrostatic air cleaner by the fan; 2. The pre-filter retains the large particles; 3. The particles in the airflow are charged p/N by the ionizing section (1st stage); 4. The charged particles are attached to the collection plates connected to the ground( 2nd stage); 5. Clean air comes out. APPLICATION The JM Series of Electrostatic Air Purifier is designed for use in industrial & Commercial Applications. It's for collection of dry and wet particulates like dust, oil mist, Cooking fumes etc. Typical Application, for example, commercial kitchen exhaust, factories, workshops, CNC machine shops, etc. ADVANTAGES 1. Collects particulates as small as 0.01pm. 2. The Collection cell is not consumable, and is easy for maintenace. This reduces your operation cost. 3. Ionizing area consists sparked tooth, hi-efficiency & stable. 4. Solid state power supply is self-regulation and maintains peak efficiency during a wide range of cell dirt-loading conditions. 5. Prefilter screens protect collection cells form large particles.

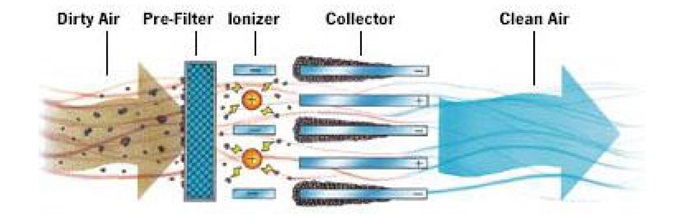

How does the ESP works 1. Polluted air is exhausted into the electrostatic filter by the fan. 2. The pre-filter retains the large particles. 3. The particles in the airflow are charged P/N by the ionizing section (1st stage). 4. The charged particles are attached to the collection plates connected to the ground(2nd stage). 5. Clean air comes out

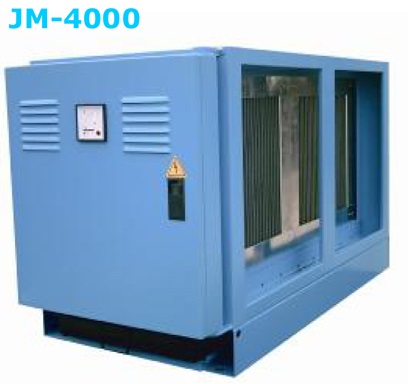

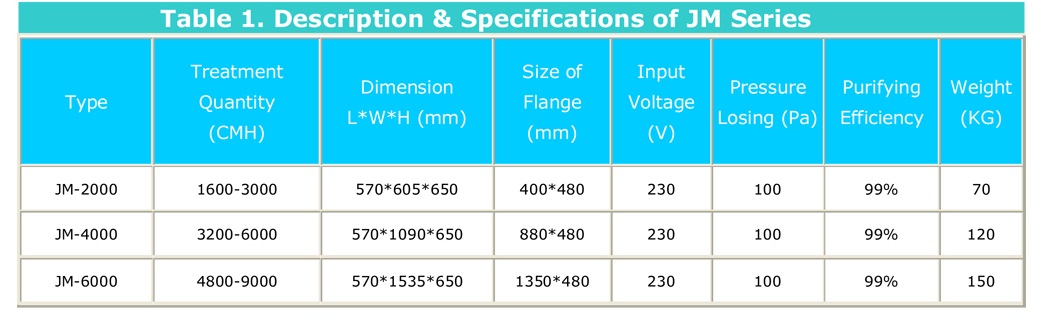

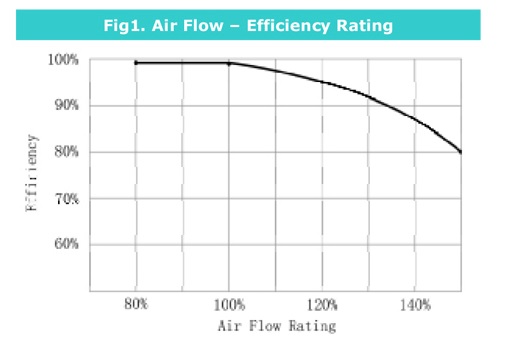

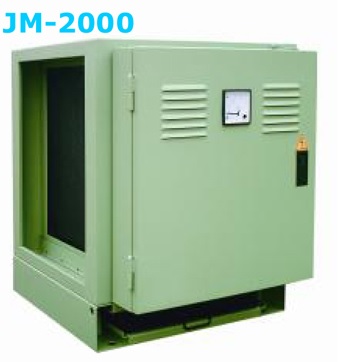

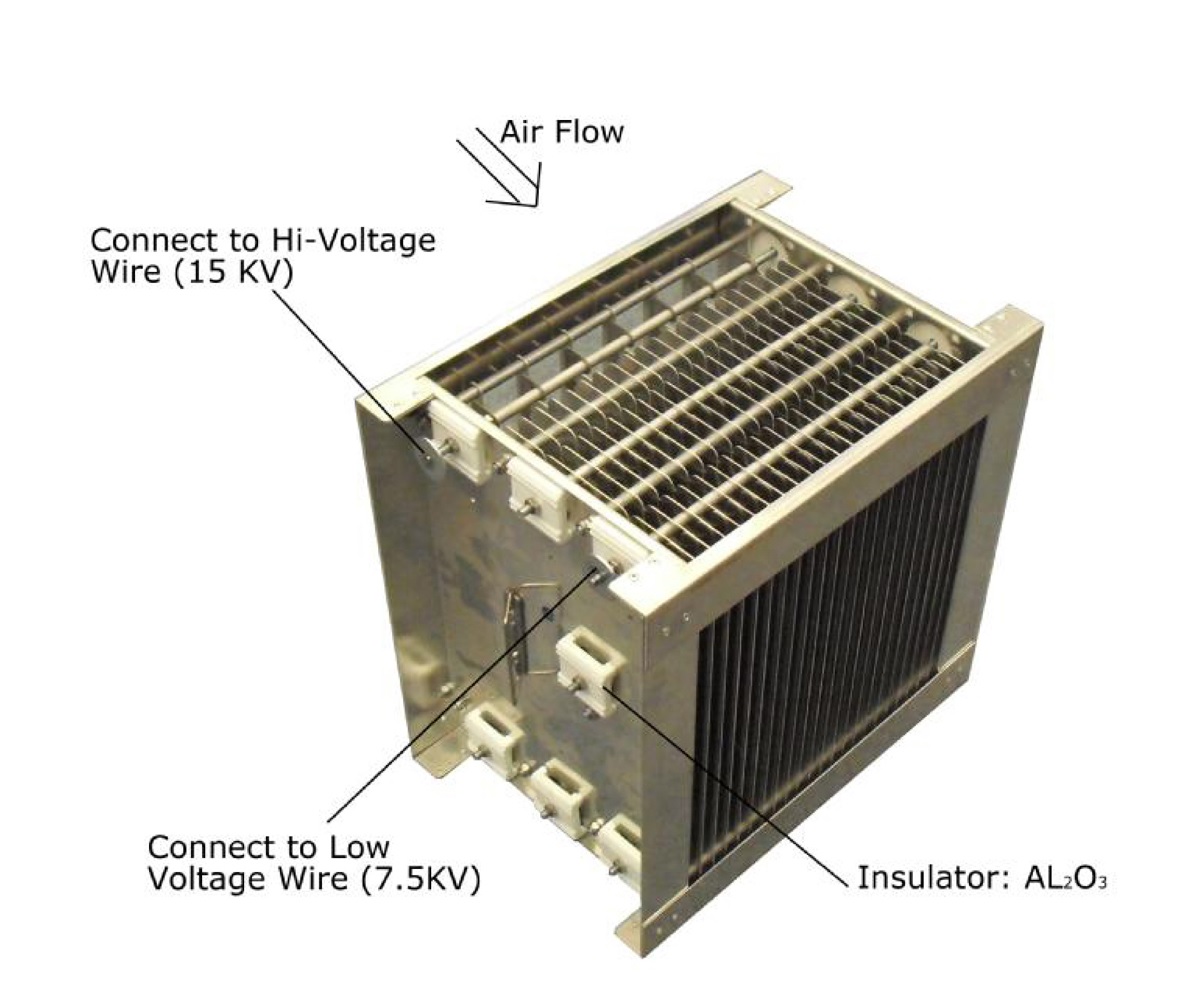

SPECIFICATIONS Models: -See Table1. Cabinet material: -Cold rolled steel(SPCC). Surface Treatment: -Baking Varnish. Color: -Blue( the color can be any color customers required). Capacity, Efficiency: -Up to 99% Dimension: -See table 1 Prefilter: -Aluminum Mesh, Washable. Insulator: -High Voltage Insulator, Al2O3 Electrical Rating: -Input Power:220~240W,, 50~60Hz. -Ironizer Voltage: 15KVdc. -Collector Voltage: 7.5KVdc.	INSTALLATION Wall Mounted, Frame Mounted, or Stacked. OPTIONS Activated carbon Filter. BA System.
